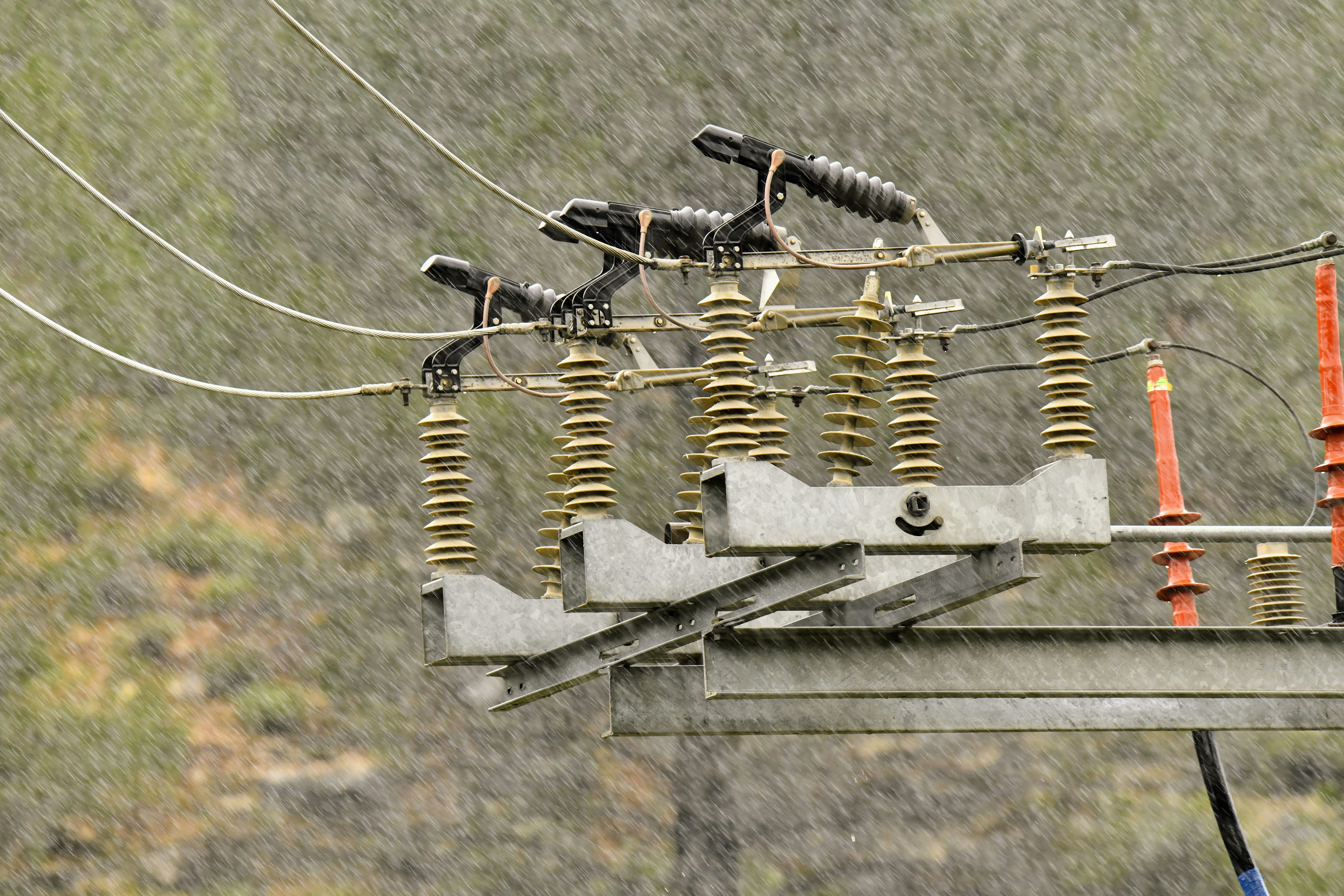

Installing Outdoor Power Disconnect Switches

So, you’re thinking about installing outdoor power disconnect switches? That’s a smart move for safety and convenience, especially when you’ve got equipment or appliances out there that need a reliable way to be cut off from the grid. This isn’t just about flipping a breaker; it’s about having a dedicated, visible, and accessible point of control. Let’s break down what you need to know to get this done right, whether you’re a DIYer or planning for an electrician.

Outdoor disconnect switches, sometimes called lock-out/tag-out devices or emergency disconnects, are crucial for a few key reasons. They aren’t just an optional extra; they’re often a requirement by electrical code for specific applications.

Safety First and Foremost

The most compelling reason is safety. Imagine you’re working on an outdoor spa, pool pump, or even a well pump. If you need to perform maintenance or repair, you want absolute certainty that the power is off at the source. An outdoor disconnect provides this clear, local point of power interruption. It eliminates the confusion of wondering if you’ve shut off the right breaker in a crowded main panel.

Preventing Accidental Energization

This is especially important for equipment that might be in a damp environment. Without a dedicated disconnect, someone could accidentally re-energize the equipment while you’re working on it, leading to electrocution. The physical nature of a disconnect switch, often with a visible handle that indicates its state (on/off), offers a tangible assurance.

Emergency Situations

In an emergency, like an electrical fire or a situation where a person or animal is in danger near energized equipment, a readily accessible outdoor disconnect can be a lifesaver. You can quickly cut power without having to navigate to an indoor electrical panel.

Code Compliance and Legal Requirements

Electrical codes, like the National Electrical Code (NEC) in the US, are designed to ensure electrical safety. For many outdoor electrical installations, a disconnect switch is not just recommended, it’s mandated.

Specific Applications Requiring Disconnects

Think about things like:

Pools and Spas: Almost universally require a disconnect within a certain distance.
Well Pumps: Often need a disconnect located near the pump house or wellhead.
Outbuildings and Detached Garages: If they have their own electrical service, a disconnect is usually needed.
Air Conditioning Units: The outdoor condenser unit typically has its own disconnect.
Decorative Lighting and Fountains: Depending on their power draw and complexity.

Ignoring these requirements can lead to code violations, failed inspections, and potential liability issues.

Ease of Maintenance and Troubleshooting

Beyond emergencies, disconnects simplify routine maintenance and troubleshooting. Instead of tracing circuits and hoping you’ve found the right breaker for that outdoor light fixture or pump, you can simply go to the disconnect and flip the switch. This saves time and frustration.

Simplifying Repairs

When a contractor or technician arrives to fix outdoor equipment, they’ll appreciate (and often expect) a dedicated disconnect. It allows them to safely isolate the equipment they’re working on without affecting other circuits in your home.

Seasonal Operations

For things like pool equipment or heaters, you might need to disconnect power for the off-season. An outdoor disconnect makes this a simple, straightforward task.

When considering the installation of outdoor power disconnect switches, it’s essential to understand the broader context of electrical safety and compliance. For a comprehensive guide on related electrical installations and safety measures, you can refer to this informative article on outdoor electrical systems. For more details, visit Angels and Blimps.

Types of Outdoor Power Disconnect Switches

Not all disconnect switches are created equal. The best type for your needs will depend on the application, the power requirements, and how you want to operate it.

Fuses vs. Non-Fused Switches

This is a fundamental distinction. A fused disconnect contains fuses that will blow and interrupt the circuit if there’s an overcurrent or short circuit. A non-fused disconnect simply breaks the circuit when the handle is thrown.

Fused Disconnects: Added Protection

Pros: Provide an extra layer of protection against overloads and short circuits. Fuses are relatively inexpensive to replace.
Cons: You need to know the correct fuse size and type. If a fuse blows, you need to replace it, which requires having spare fuses on hand.

Non-Fused Disconnects: Simplicity

Pros: Simpler operation; no fuses to replace. Good for applications where the incoming circuit already has overcurrent protection.
Cons: Don’t offer the same level of fault protection as fused disconnects.

Rotary vs. Lever-Actuated Switches

The way you physically operate the switch is another difference.

Rotary Disconnects

How they work: These often have a knob or handle that rotates to engage or disengage the circuit. They can look quite different, from simple knobs to more robust, industrial-looking units.
Typical uses: Frequently found with HVAC units and larger outdoor machinery. They often allow for more compact enclosures.

Lever-Actuated Disconnects

How they work: These use a visible lever that swings to indicate the on/off position. This is the classic “knife switch” style, though modern versions are safer and enclosed.
Typical uses: Very common for pool equipment, well pumps, and general-purpose outdoor disconnects. The visible lever is a clear indicator of the switch’s status.

Enclosure Types and Ratings

Where the switch is housed is critical for outdoor use. These enclosures are designed to protect the internal components from the elements.

NEMA Ratings

You’ll often see NEMA ratings (National Electrical Manufacturers Association). For outdoor use, you’ll typically look for:

NEMA 3R: Provides protection against falling rain, sleet, snow, and damage from external ice formation. This is a common rating for many outdoor disconnects.
NEMA 4X: Offers all the protection of NEMA 3R, plus is watertight, dust-tight, and resistant to corrosion. Often made of stainless steel or robust plastic. This is a good choice in harsh environments or where frequent washing is involved.

Material Matters

Enclosures can be made of metal (like galvanized steel or aluminum) or robust plastics. Metal enclosures offer durability, while plastic can be lighter and more resistant to certain types of corrosion.

Specialty Disconnects

Sometimes, standard disconnects aren’t quite enough.

Load-Break vs. Non-Load-Break

Load-break: Can be safely operated while the circuit is carrying its normal electrical load. This is the most common and useful type for general applications.
Non-load-break: Must only be operated when the circuit is de-energized. These are less common for typical outdoor disconnect needs and more for specific industrial settings.

Combination Motor Starters

These units combine a disconnecting means with a motor starter (which provides overload and short-circuit protection for motors). They are common for dedicated motor applications like large pumps.

Planning Your Installation: Where to Put It and What You’ll Need

Before you even think about wiring, proper planning is key. This involves figuring out the location, size, and ensuring you have the right materials and tools.

Choosing the Right Location

The placement of your outdoor disconnect is governed by both practicality and electrical code.

Proximity to Equipment

The general rule of thumb is that the disconnect should be located within a reasonable distance of the equipment it controls. This ensures easy access for operation and maintenance.

Code-Specific Requirements

Pools/Spas: NEC Article 680 has very specific rules about the distance requirement from the edge of the pool or spa. You can’t have it too close, and often there’s a minimum distance from the water.
Other Equipment: For other appliances like HVAC condensers or well pumps, the code might specify it needs to be “readily accessible” and within a certain visual line of sight or distance.
Accessibility: It must be easy to get to without having to move obstacles or climb.

Environmental Considerations

Protection from Damage: Mount it where it won’t be easily damaged by lawnmowers, vehicles, or accidental impacts.
Protection from the Elements: Ensure the enclosure rating is appropriate for the location’s weather exposure. Avoid locations where water naturally pools.

Sizing the Disconnect Switch

This is critical for safety and proper operation. You can’t just grab any old disconnect.

Amperage Rating

The disconnect’s amperage rating must be equal to or greater than the overcurrent protection device (breaker or fuse) that supplies the circuit to the disconnect. It should also be sized appropriately for the load it will serve.

Example: If your circuit breaker feeding the disconnect is rated at 20 amps, your disconnect switch must also be rated for at least 20 amps.

Voltage Rating

The voltage rating of the disconnect must match or exceed the voltage of the circuit you’re connecting to (e.g., 120V, 240V, 480V).

Horsepower Rating (for Motor Loads)

If the disconnect is controlling a motor, it will also have a horsepower (HP) rating. This rating must be sufficient for the motor you’re trying to control. It’s often found on the motor’s nameplate.

Gathering Your Materials and Tools

Having everything ready before you start makes the job much smoother.

Essential Materials:

Outdoor Disconnect Switch: Appropriately rated for amperage, voltage, and enclosure type.
Electrical Wire: Sized correctly for the amperage and voltage of your circuit (refer to NEC tables or consult an electrician). Outdoor-rated wire (like UF-B or conduit-protected THHN/THWN) is essential.
Conduit and Fittings: If you’re running wire through conduit for protection, you’ll need the appropriate type and size of conduit, connectors, boxes, and straps.
Wire Connectors: Weather-resistant wire nuts or other approved connectors.
Mounting Hardware: Screws, bolts, or other fasteners suitable for mounting the disconnect box to its location (e.g., wood, masonry).
Grommets or Bushings: To provide a smooth entry for wires into the disconnect enclosure.
(Optional) Fuses: If you’re using a fused disconnect.

Essential Tools:

Screwdrivers: Various sizes, including Phillips and flathead.
Wire Strippers: For removing insulation from wires.
Pliers: Lineman’s pliers, needle-nose pliers.
Voltage Tester (Non-Contact and/or Multimeter): ABSOLUTELY ESSENTIAL for verifying power is off.
Drill and Drill Bits: For mounting.
Level: To ensure the box is mounted straight.
Measuring Tape: For planning wire runs and placement.
Safety Glasses: Always wear them.
Work Gloves: For protection.
Fish Tape: If using conduit, this helps pull wires through.

Step-by-Step Installation Process

This is a general guide. Always consult your local electrical codes and consider hiring a qualified electrician if you’re unsure about any step. Electricity is dangerous.

1. Turn Off the Power!

This is the most critical step.

Locate the Correct Breaker or Fuse

Go to your main electrical panel and identify the breaker or fuse that supplies power to the circuit where you’ll be installing the disconnect.

Verify Power is Off

Use your non-contact voltage tester on the wires at the point where you plan to connect the disconnect (or at the device it controls, if you’re replacing an existing connection).
If it’s a new installation, you’ll be working on the circuit before connecting it to the disconnect. Once you’ve turned off the breaker, test the wires in the junction box or conduit opening where the disconnect will connect.
DO NOT PROCEED UNTIL YOU ARE 100% SURE THE POWER IS OFF. Double-check.

2. Mount the Disconnect Enclosure

Securely attach the disconnect switch’s enclosure to its chosen location.

Choosing the Mounting Surface

Wood: Use appropriate wood screws or lag bolts.
Masonry (Brick, Concrete): Use masonry anchors and screws.
Metal Pole: Use U-bolts or specialized clamps.

Ensuring Stability

The enclosure must be firmly mounted and not wobble. This prevents stress on the wiring and ensures the switch mechanism functions correctly.

3. Run and Connect the Wiring

This is where you bring power to the disconnect and then to the load.

Incoming Power (Line Side)

Run the electrical cable or wires from your power source (e.g., junction box, subpanel) to the disconnect enclosure.
If using conduit, feed the wires through the conduit and into the enclosure.
Use appropriate connectors (e.g., conduit connectors, cable clamps) to secure the conduit or cable to the enclosure.
Carefully strip the ends of the wires and connect them to the “line” or “input” terminals of the disconnect switch according to the manufacturer’s instructions. Pay attention to grounding and neutral connections if applicable.

Outgoing Power (Load Side)

Run the electrical cable or wires from the disconnect enclosure to the equipment you want to control (e.g., pool pump, outdoor lights).
Again, use conduit for protection if required or desired.
Connect these “load” or “output” wires to the corresponding terminals on the disconnect switch.

Grounding is Non-Negotiable

Ensure that both the incoming and outgoing ground wires are properly connected to the grounding screw or bar within the disconnect enclosure.
The enclosure itself should also be grounded.

4. Test and Verify

Before closing everything up and turning the main power back on, a few checks are essential.

Visual Inspection

Double-check all connections to ensure they are tight and secure.
Make sure no bare wires are touching unintended surfaces.
Confirm that the enclosure is properly sealed.

Continuity Check (Optional but Recommended)

If you have a multimeter, perform a continuity test on the wires before energizing the circuit. This can help catch any accidental breaks or shorts.

5. Turn Power Back On

Once you’re satisfied with the installation and have performed all checks:

Re-Energize the Circuit

Go back to your main electrical panel and turn the circuit breaker or re-insert the fuse that controls this circuit.

Test the Disconnect

Test the “Off” position: Use your voltage tester to confirm there is NO power at the load side of the disconnect switch when it is in the “off” position.
Test the “On” position: Now, carefully move the disconnect to the “on” position. Use your voltage tester to confirm that power is present at the load side.
Test the equipment: Ensure the equipment controlled by the disconnect is functioning as expected.

When considering the installation of outdoor power disconnect switches, it’s essential to understand the broader context of electrical safety and compliance. A related article that provides valuable insights into this topic is available for those looking to enhance their knowledge. You can read more about the importance of proper electrical installations and safety measures in residential settings by visiting this informative article. This resource can help ensure that your outdoor installations meet safety standards and function effectively.

Maintenance and Safety Best Practices

Location	Number of switches installed	Date of installation
Residential area	15	May 5, 2021
Commercial area	10	June 12, 2021
Industrial area	25	April 20, 2021

Your work isn’t done once the disconnect is installed and working. Ongoing care and awareness are vital.

Regular Inspections

Make it a habit to visually inspect the disconnect switch periodically.

Physical Condition

Look for any signs of corrosion, damage to the enclosure, or loose mounting hardware.
Ensure the operating handle moves freely and operates smoothly.
Check that any seals or gaskets are intact and providing a proper weather seal.

Environmental Checks

Clear away any debris, leaves, or overgrowth that might be accumulating around the disconnect.
Ensure drainage points in the enclosure (if any) are not blocked.

Periodic Testing

Don’t just rely on visual checks.

Functional Test

At least annually, operate the disconnect switch through its full range of motion (on and off) multiple times. This helps keep contacts clean and prevents them from sticking.

Verify Power Interruption

Each time you plan to work on the connected equipment, perform the crucial step of turning the disconnect off and verifying with a voltage tester that the power is indeed off before touching any wires or components.

Lockout/Tagout Procedures

For serious maintenance or if multiple people are working on the system, the lockout/tagout (LOTO) procedure is essential.

What is LOTO?

It’s a safety procedure that ensures dangerous equipment is properly shut off and not able to be started up again before maintenance or servicing work is completed.

Using the Lockout Feature

Many outdoor disconnect switches have a provision to be locked in the “off” position using a padlock. This prevents someone from accidentally turning it back on while work is in progress.

Tagging for Clarity

A tag is attached to the lock, clearly stating who locked it out, why, and when. This provides clear communication amongst workers.

Understanding Limitations

No electrical device is foolproof.

Not a Substitute for Main Panel Safety

While outdoor disconnects are invaluable, they don’t replace the need for safe practices at your main electrical panel. Always ensure breakers are properly rated and circuits are not overloaded.

Professional Help When Needed

If you notice any damage, corrosion, or if the switch starts to feel stiff or unreliable, don’t try to force it. Call a qualified electrician to diagnose and repair or replace it. Attempting to fix a faulty disconnect yourself can be extremely hazardous.

When to Call a Professional Electrician

Let’s be clear: even with a good understanding of the process, there are times when you should absolutely bring in a qualified electrician. It’s not about being unable to do it yourself; it’s about recognizing when the risks are too high or the job requires specialized knowledge.

Complex Installations or Upgrades

If you’re dealing with a large property, multiple outdoor circuits, or if you need to upgrade your existing electrical service to accommodate new outdoor equipment, this is often a task for a professional. They can assess your entire system and ensure everything is integrated safely and to code.

High Voltage or High Amperage Loads

Appliances that draw a lot of power, like large water heaters, commercial-grade outdoor equipment, or extensive outdoor lighting systems, can involve higher voltages and amperages. Working with these demands specialized knowledge and safety equipment.

New Service Entrances or Subpanels

If your project requires running new power from the utility meter or installing a new subpanel in an outbuilding, this is definitely an electrician’s job. These are critical points in your electrical distribution system.

Unclear Code Requirements

Electrical codes can be complex and vary by location. If you’re unsure about the specific requirements for your particular installation, or if your local inspector is being particularly strict, an electrician will know the ins and outs. They can ensure you’re compliant from the start, avoiding costly rework.

Uncertainty About Wire Sizing or Protection

Choosing the correct wire gauge, conduit type, and overcurrent protection (breakers or fuses) is crucial for preventing fires and equipment damage. An electrician has the knowledge and resources (like NEC tables) to make these determinations accurately.

Signs of Existing Electrical Issues

If you’re installing a disconnect and notice other potential problems with your outdoor wiring – like frayed insulation, old or damaged junction boxes, or outlets that shock you or are hot to the touch – stop.

Investigating Existing Problems

An electrician can safely investigate these existing issues and address them before you add new loads to an already compromised system. It’s better to fix existing problems first.

Anytime You Feel Unsafe or Unsure

This is perhaps the most important point. Your safety is paramount. If at any stage of planning or thinking about the installation you feel uncertain, nervous, or unqualified, it’s a clear signal to step back and call a professional.

Don’t guess.
Don’t assume.
Don’t put yourself at risk.

A qualified electrician is trained to handle these tasks safely and efficiently. While there’s a cost involved, it’s an investment in your safety and the longevity of your electrical system.

FAQs

What is an outdoor power disconnect switch?

An outdoor power disconnect switch is a device used to completely shut off the power supply to a building or outdoor equipment. It is commonly used for safety and maintenance purposes.

Why would I need to install an outdoor power disconnect switch?

Installing an outdoor power disconnect switch allows for easy and safe access to shut off power to outdoor equipment or buildings in case of emergencies, maintenance, or repairs.

Where should outdoor power disconnect switches be installed?

Outdoor power disconnect switches should be installed in a location that is easily accessible and visible, typically near the main power source or equipment it controls. It should also be installed in a weatherproof enclosure to protect it from the elements.

What are the different types of outdoor power disconnect switches?

There are several types of outdoor power disconnect switches, including fused and non-fused switches, as well as rotary and knife blade switches. The type of switch needed will depend on the specific application and electrical requirements.

Do I need a professional to install an outdoor power disconnect switch?

It is recommended to have a qualified electrician install an outdoor power disconnect switch to ensure it is done safely and in compliance with local electrical codes and regulations.
